Material
Steel.
Version
Connection plate and assembly parts electro zinc-plated.
Show more
Show less
Description
Material
Steel.
Version
Connection plate and assembly parts electro zinc-plated.
Note
Suitable for profile tubes with 30 mm OD.

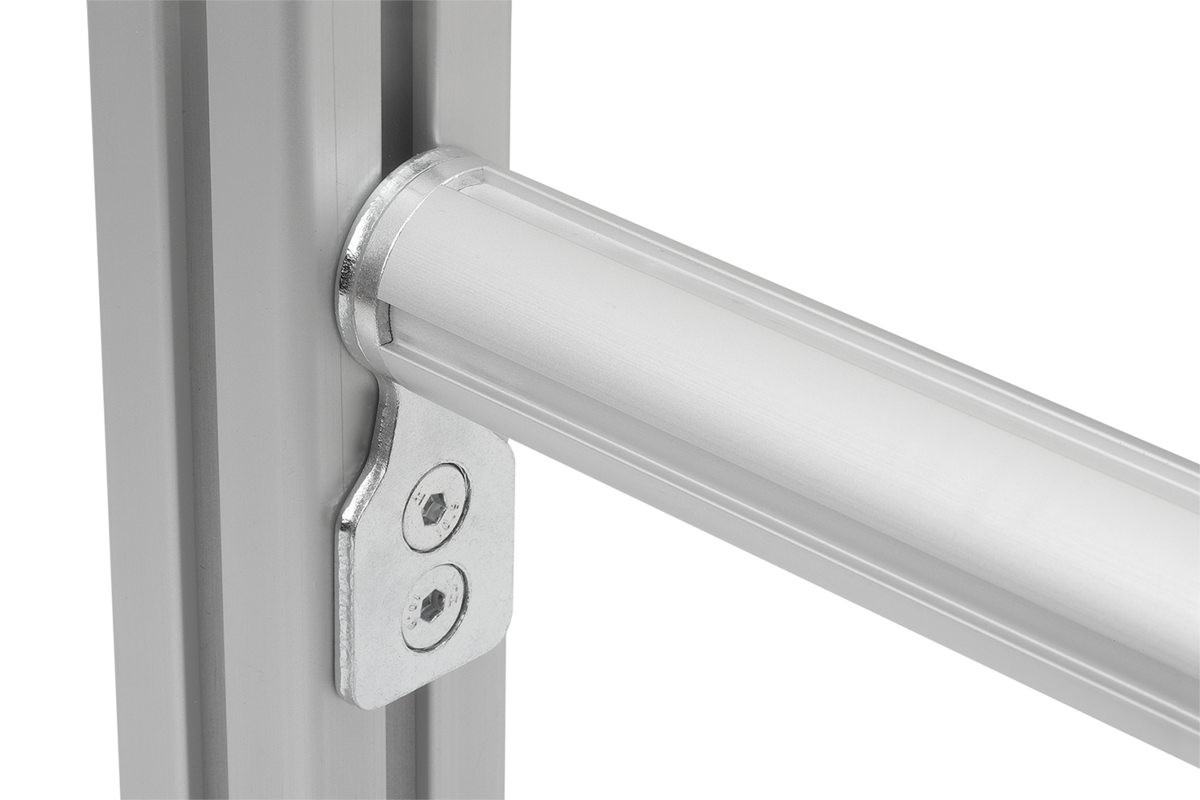

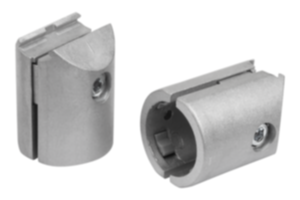

For right angle joints of a profile tube with a type I slot 8 aluminium profile.
Fastened with M6 screw in Ø30 profile tube using an M6 threaded insert.
For right angle joints of a profile tube with a type I slot 8 aluminium profile.
Fastened with M6 screw in Ø30 profile tube using an M6 threaded insert.

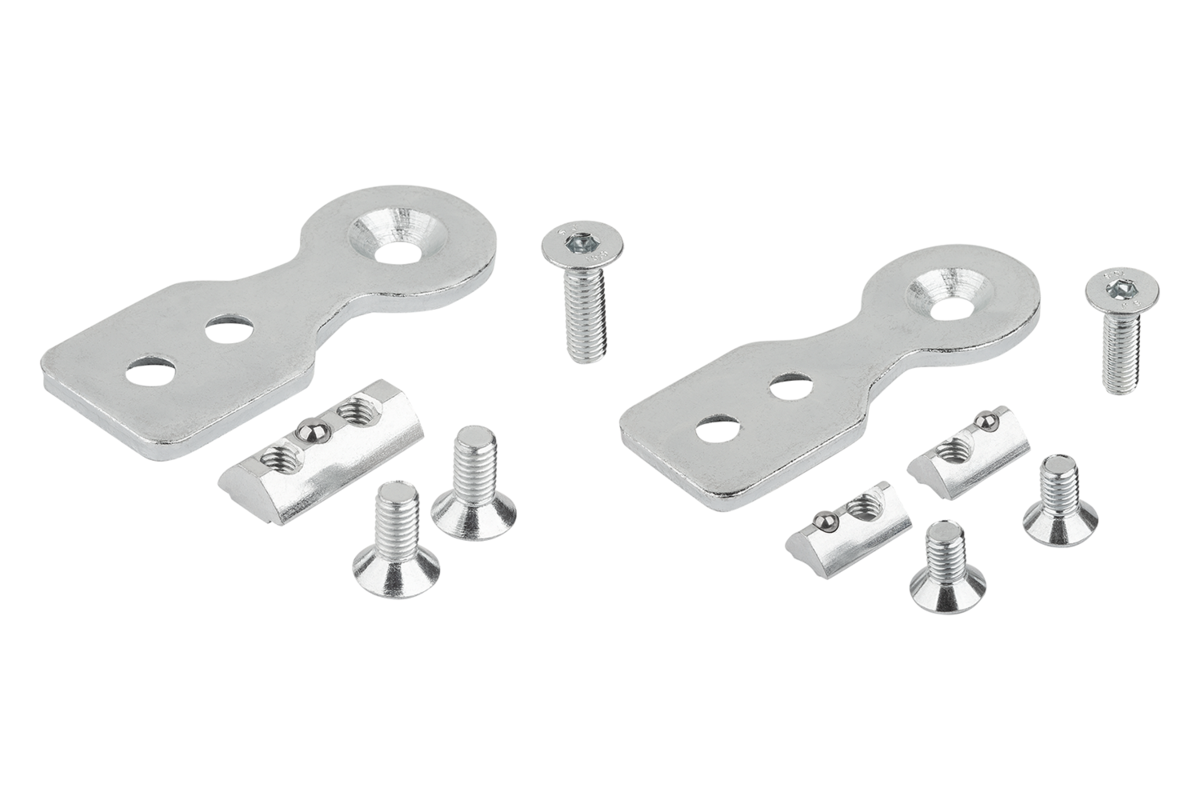

Scope of delivery
Set for 6 slot:
1 T-connector plate D30.
2 Slot keys - slot 6 - M6.
2 DIN 7991 M6x12 screws.
1 DIN 7991 M6x20 screw.
Set for 8 slot:
1 T-connector plate D30.
1 Double slot key - slot 8 - 2x M6.
2 DIN 7991 M6x14 screws.
1 DIN 7991 M6x20 screw.
1 T-connector plate D30.
2 Slot keys - slot 6 - M6.
2 DIN 7991 M6x12 screws.
1 DIN 7991 M6x20 screw.
Set for 8 slot:
1 T-connector plate D30.
1 Double slot key - slot 8 - 2x M6.
2 DIN 7991 M6x14 screws.
1 DIN 7991 M6x20 screw.
